SMPS Flyback Transformer
(590)

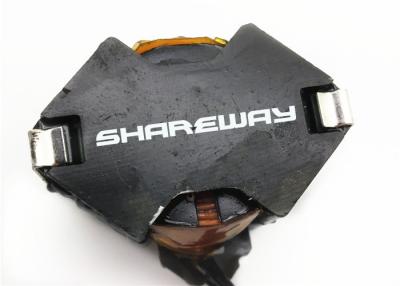

SMD Ferrite Core SMPS Flyback Transformer Small Flyback Transformer
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
High Light:ferrite core transformer, high frequency transformer
SMD Ferrite Core Small Size SMPS Flyback Transformer smd ferrite core small ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted: PARAMETER TEST CONDITIONS VALUE D.C. RESISTANCE 1-3 @20°C 0.150 ohms max D.C. RESISTANCE 6-4 @20°C 0.150 ohms max INDUCTANCE 1-2 100KHz,10mVAC,Ls 110uH min. INDUCTANCE ... View More
➤ Visit Website
Copper Material SMPS Flyback Transformer EP-312SG 1/0.083/0.208 Turns Ratio With RoHS
Price: Supportive
MOQ: 500/1000
Delivery Time: Stock Or 3 weeks
Brand: Shareway
High Light:ferrite core transformer, high frequency transformer
1:0.083:0.208 Turns ratio SMPS Flyback Transformer EP-312SG with RoHS Description: RoHS Compliant Surface Mount Device Operating temperature range: -40℃ to +125℃ Turns Ratio: 1:0.083:0.208 (±3%) Inductance: 253uH LK(uH max): 7.5 DCR (mΩ max) : 420 HI-POT: 1500Vrms Application: Power supply PCB board... View More
➤ Visit Website
SWT0018NL ETD34 POE 90W SMPS Flyback Transformer Through Hole
Price: 1.2~2.2USD
MOQ: 100
Delivery Time: 2~3weeks
Brand: Shareway
High Light:Through Hole Ferrite Core Transformer, 90W SMPS Flyback Transformer, SMPS Flyback Transformer POE
Maximum Input Voltage: 265V Maximum Output Voltage : 3.3V to 6.5V/8.5VDC to 17VDC Maximum Operating Frequency (kHz) : 132 Power Rating : 90W Lead Style : PC Pin Number of Terminals: 14 Maximum Operating Temperature (°C): 50 Product Length (mm): 40 Product Depth (mm): 43 Product Height (mm) : 14 FAQ ... View More
➤ Visit Website
760390013 MID PPTI SMPS Flyback Transformer Push Pull 250VAC Small Flyback Transformer
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
High Light:250VAC Small Flyback Transformer, Push Pull SMPS Flyback Transformer, MID PPTI SMPS Flyback Transformer
MID-PPTI Push-Pull Transformers SMPS Flyback Transformer 760390013 ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted: PARAMETER TEST CONDITIONS VALUE D.C RESISTANCE 1-3 @20°C 0.419 ohms max D.C RESISTANCE 6-4 @20°C 0.335 ohms max INDUCTANCE 1-3 100KHz, 100mVAC,Ls 340uH min DIELECTRIC 1-6 6250Vr... View More
➤ Visit Website
85 - 265Vrms 74089 Power Ferrite SMPS Flyback Transformer
Price: supportive
MOQ: 100
Delivery Time: 3-4weeks
Brand: Shareway
High Light:132kHz SMPS Ferrite Core Transformer, SMD Ferrite SMPS Flyback Transformer, 265Vrms SMPS Flyback Transformer
1. Primary / Secondary Insulation ≥ 4000V • Primary / Auxiliary Insulation ≥ 1500V 2. Creepage distance Primary / Secondary ≥ 8mm 3. Ambient temperature < 50°C 4. Output Power maximum: 20w 5. Inductance(+/-10%):1300 uH 6. Input voltage: 85 - 265Vrms 7. Frequency:132kHz View More
➤ Visit Website
3+3 Pins SMPS Flyback Transformer PUSH PULL Surface Mount Transformer
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
High Light:PUSH PULL Surface Mount Transformer, Phenolic SMPS Flyback Transformer, 3 Pins SMPS Flyback Transformer
Suface Mount 3+3Pins PUSH-PULL SMPS Flyback Transformer ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted: PARAMETER TEST CONDITIONS VALUE D.C RESISTANCE 1-3 @20°C 0.426 ohms max D.C RESISTANCE 6-4 @20°C 0.481 ohms max INDUCTANCE 1-3 100KHz, 100mVAC,Ls 340uH min DIELECTRIC 1-6 6250Vrms, 1 secon... View More
➤ Visit Website
Min SMPS Flyback Transformer Chokes High Voltage 200uH For Protection Relays
Price: Supportive
MOQ: 500/1000
Delivery Time: Stock Or 3 weeks
Brand: Shareway
High Light:Single Port Small Flyback Transformer, 200uH SMPS Flyback Transformer, Protection Relays SMPS Flyback Transformer
High Voltage 200uH Min Transformer/Chokes for Protection relays ELECTRICAL SPECIFICATIONS @25℃ unless otherwise noted: PARAMETER TEST CONDITIONS VALUE D.C. RESISTANCE 1-3 @20℃ 0.130 ohms ±20% D.C. RESISTANCE 6-4 @20℃ 0.375 ohms ±20% INDUCTANCE 1-3 10KHz,10mVAC,Ls 200uH min LEAKAGE INDUCTANCE 1-3 tie... View More
➤ Visit Website
Power Smps Transformer POE30P-33L Pin To Pin Alternative For Silicon Labs Si3401 Si3402
Price: Supportive
MOQ: 200/500//1200
Delivery Time: 2~3 weeks or inventory support
Brand: Shareway
High Light:EP SMPS Ferrite Core Transformer, Silicon Labs Power Smps Transformer, Pin Alternative Power Smps Transformer
POE30P-33L Flyback Transformer for Silicon Labs Si3401, Si3402 PoE Application Specifications: Trader PN# POE30P-33LD Product Category Audio Transformers/ Signal Transformers Product Power Type Flyback Transformer Application PoE Length 10.92 mm Width 8.6 mm Height 9.02mm Packaging Tape&Reel/ Tu... View More
➤ Visit Website
Copper SMPS Flyback Transformer Ferrite Magnet SA9672NL = ZA9672-BE For LM25184-Q1
Price: Negotiation
MOQ: 200/500//1200
Delivery Time: 2~3 weeks or inventory support
Brand: Shareway
High Light:Copper SMPS Flyback Transformer, Ferrite Magnet SMPS Flyback Transformer, 500kHz PoE Flyback Transformer
SA9672NL = ZA9672-BE SMD transformer For LM25184-Q1 Flyback Converter SA9672NL is a five output version optimized for typical design applications of TI's LM25184 flyback converter. It is designed to operate up to 300 kHz with 4 to 42 V input voltage . Normally this part have a 1500 Vrms isolation vo... View More
➤ Visit Website
Ignition Coil High Voltage Flyback Transformer 100-680uH Inductance LPE6855ER101MG
Price: Supportive
MOQ: 500/1000
Delivery Time: Stock Or 3 weeks
Brand: Shareway
High Light:high frequency transformer, small flyback transformer
LPE6855ER101MG High Voltage Coil, Ignition Coil Flyback Transformer Description : Compliant to RoHS directive 2002/95/EC (Multiple winds are connected in parallel) Inductance Range: 10 μH to 150 000 μH, measured at 0.10 VRMS at 10 kHz without DC current, using an HP 4263A or HP 4284A impedance analy... View More
➤ Visit Website
Ferrite Core Transformer / SMPS Flyback Transformer MOX-CMC-2626 Core Switching Power
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
High Light:ferrite core transformer, small flyback transformer
MOX-CMC-2626 core switching power high frequency SMPS Flyback Transformer Description: • ALL DIMENSIONS IN MILLIMETERS. • RoHS COMPLIANT. • RATED VOLTAGE: 250VAC. • WITHSTANDING VOLTAGE: 2400VAC. (2 SECONDS BETWEEN LINES) • INSULATION RESISTANCE: 500VDC MORE THAN 100MΩ. (BETWEEN LINES) • OPERATING T... View More
➤ Visit Website
3 Watt POE30P-33L_ Flyback transformers for PoE applications
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
High Light:ferrite core transformer, high frequency transformer
3 Watt POE30P-33L_ Flyback transformers for PoE applications Part number Power (W) Inductance at 0 A ±10% (μH) Inductance at Ipk min (μH) DCR max (Ohms) Leakage inductance max (μH) Turns ratio Ipk (A) Output pri bias sec pri : sec pri : bias POE30P-33L_ 3 310 279.0 1.02 2.01 0.066 4.75 1 : 0.19 1 : ... View More
➤ Visit Website
750315841 P2P PoE Flyback Transformer ST15841NL RM6 For UCC28704EVM-724
Price: Supportive
MOQ: 200/500//1200
Delivery Time: 2~3 weeks or inventory support
Brand: Shareway
High Light:750315841 PoE Flyback Transformer, P2P PoE Flyback Transformer, ST15841NL RM6 Mini Flyback Transformer
750315841 is a P2P PoE Flyback Transformer to ST15841NL, RM6 transformer for UCC28704EVM-724 10-W USB Adapter Specifications: Trader PN# 750315841 Product Category Audio Transformers/ Signal Transformers Product Power Type Flyback Transformer, Forward mode Transformer Application PoE Length 10.92 mm... View More
➤ Visit Website
Primary / Auxiliary Insulation Flyback Surface Mount Transformer 20w 1100uH
Price: supportive
MOQ: 100
Delivery Time: 3-4weeks
Brand: Shareway
High Light:Primary Insulation SMPS EP Transformer, 1100uH Surface Mount Transformer, SMPS Flyback Surface Mount Transformer
1. Primary / Secondary Insulation ≥ 4000V • Primary / Auxiliary Insulation ≥ 1500V 2. Creepage distance Primary / Secondary ≥ 8mm 3.Ambient temperature < 50°C 4.Output Power maximum: 20w 5.Inductance(+/-10%):1100uH 6.Input voltage:185 - 265Vrms 7.Frequency:132kHz View More
➤ Visit Website
Wholesale PoE Flyback Transformer with 1/1 coupled inductor JA4637-AL
Price: USD$0.65 to USD$1.20 for 1K to 10K Pieces
MOQ: 100pcs
Delivery Time: 3 days for sample, 4 weeks for mass order
Brand: Shareway
High Light:common mode toroidal chokes, surface mount choke
JA4637-AL 1 : 1 coupled inductor Can be used as a flyback transformer Description: • Developed for use with Texas Instruments TPS40210 SEPIC Converter; shown on PMP5143 reference design. • 1 : 1 coupled inductor • Can also be used as a flyback transformer or in Zeta applications • Winding to winding... View More
➤ Visit Website
SA4410 = KA4976-AL Low Voltage SMPS Flyback Transformer High Frequency 72uH Transformer
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
High Light:ferrite core transformer, high frequency transformer
SA4410 = KA4976-AL High-Frequency Low Voltage SMPS Flyback Transformer for Analog Devices AduM347x Quad-Channel Digital Isolators ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted: PARAMETER TEST CONDITIONS VALUE D.C. RESISTANCE 2-4 @20°C 0.124 ohms max D.C. RESISTANCE 9-7 @20°C 0.103 ohms max ... View More
➤ Visit Website
1500V SMD/SMT SMPS Miniature Flyback Transformer EFD-031SG With RoHS Approval
Price: Supportive
MOQ: 500/1000
Delivery Time: Stock Or 3 weeks
Brand: Shareway
High Light:ferrite core transformer, high frequency transformer, rohs approval smps flyback transformer
29.3*21.85*12.0mm 1500V SMD/SMT SMPS Flyback Transformer EFD-031SG Description: Part Number EFD-031SG Power (W) 25.0 Vinput (DC) 18-57V Output 3.3V,7.5A Aux/Bias 11V,20mA Drive / Application freq (KHz) 250 Pri Inductance (uH)±10% 50 Leakage Inductance (uH MAX) 2.2 Hi-pot (Vrms) Pri-Sec 1500 Length 2... View More
➤ Visit Website
750310355 TRANS POWER FOR LT3751 THRUHOLE For DC/DC Converters SMPS Transformer
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
High Light:DC DC Converter SMPS Transformer, 750310355 Transformer, 1000V rms SMPS Transformer
750310355 TRANS POWER FOR LT3751 THRU HOLE, For DC/DC Converters SMPS Transformer Features of 750310355 Transformer: Designed for Linear Technology LT3751 A typical application is DC/DC Converters Apply for Capacitor Charger Isolation Voltage : 1000V rms Inductance 2.5uH @ 50KHz Mounting Type: Throu... View More
➤ Visit Website
750316031 Horizontal Installation CCFL Inverter Transformer 150KHz Min Frequency
Price: Supportive
MOQ: 100/500/1000
Delivery Time: Stock or 3 weeks
Brand: Shareway
High Light:ferrite core transformer, small flyback transformer, Horizontal SMPS Flyback Transformer
750316031 Horizontal Installation SMPS Flyback Transformer For CCFL inverter ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted: PARAMETER TEST CONDITIONS VALUE D.C. RESISTANCE 1-3 @20°C 0.160 ohms max D.C. RESISTANCE 6-4 @20°C 0.350 ohms max INDUCTANCE 1-3 100KHz,10mVAC,Ls 370uH min. DIELECTRIC... View More
➤ Visit Website
SMD SMPS Flyback Transformer 10uH DCT15EFD-U44S003 For Linear PoE
Price: Supportive
MOQ: 500/1000
Delivery Time: Stock Or 3 weeks
Brand: Shareway
High Light:SMD SMPS Flyback Transformer, 10uH SMPS Flyback Transformer, Ferriter Core PoE Flyback Transformer
DCT15EFD-U44S003 SMD 5+5 for Linear Technology Chipset 3A 5A PoE application DCT15EFD-U44S003 is a transformer designed for Linear Technology Chipset, for 3A or 5A Charging application. Specification of DCT15EFD-U44S003 SMD 5+5: Trader Part Number DCT15EFD-U44S003 Part Number SA15003NL Inductance: 6... View More
➤ Visit Website
