PCD Notching tips
Price: Negotiable
MOQ: Negotiable
Delivery Time: 10-14 days
Brand: New Asia Rich
High Light:pcd tipped inserts, polycrystalline diamond inserts
PCD Notchting tips Specifications of PCD Notching inserts: Designation D (mm) L (mm) B (mm) H (mm) S (mm) N12-PCD 4.00 8.00 1.20 2.50 1.30 N14-PCD 4.50 9.20 1.40 3.00 1.80 N16-PCD 5.00 10.40 1.60 3.20 2.00 N18-PCD 5.00 11.50 1.80 3.50 2.30 N20-PCD 5.50 13.50 2.00 3.70 2.50 - Non-standard tools will ... View More
➤ Visit Website

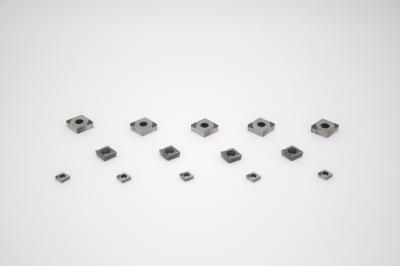

Polycrystalline Diamond PCD Turning Inserts SCGW 120404
Price: Negotiable
MOQ: Negotiable
Delivery Time: 14 days
Brand: New Asia Rich
High Light:PCD Turning Inserts SCGW 120404, SCGW 120404, SCGW 120404 polycrystalline diamond inserts
Polycrystalline Diamond PCD Turning Inserts SCGW 120404 PCD Turning insert, CCGW / CCMW Designation I.C. S D R SCGW 120404 12.70 4.76 5.16 0.4 SCGW 120408 12.70 4.76 5.16 0.8 SCGW 120412 12.7 4.76 5.16 1.2 View More
➤ Visit Website
Diamond Milling tools
Price: Negotation
MOQ: Negotiable
Delivery Time: 10-14 days
Brand: New Asia Rich
High Light:diamond turning tools, lathe turning tools
Diamond Milling tools View More
➤ Visit Website
WNGA 080404 WNMA 080408 CBN Turning Inserts 3 Tips
Price: Negotation
MOQ: Negotiable
Delivery Time: 10-14 days
Brand: New Asia Rich
High Light:WNMA 080408 CBN Turning Inserts, WNGA 080404, WNMA 080408
PCBN insert, WNGA 080404, 3 tips PCBN Turning insert, WNGA 080408 Designation I.C. S D R WNGA 060402 -3N 9.525 4.76 3.81 0.2 WNGA 080404 -3N 12.7 4.76 5.16 0.4 WNMA 080408 -3N 12.7 4.76 5.16 0.8 View More
➤ Visit Website
PCBN CBN CV Joint Milling Short / Long Variations
Price: Negotation
MOQ: 1 piece
Delivery Time: 10-14 days
Brand: New Asia Rich
High Light:CBN CV Joint Milling, PCBN CV Joint Milling, Long Variations CV Joint Milling
CBN, CV Joint Milling Solution for short / long variations. Seal work-surface grinding, meeting “no lead” requirements. 0 to 30 degree wheelhead swivel configuration, allowing two different grind wheels to be fitted on a single wheelhead. Maximum productivity in long tulips. View More
➤ Visit Website
Coated Machining PCBN CCMW Thread Cutting Tool
Price: Negotiable
MOQ: 10 pic
Delivery Time: 10~30 work days
Brand: rich cutting tool
High Light:CCMW Thread Cutting Tool, PCBN Thread Cutting Tool, CCMW hard turning inserts
Coated Machining PCBN CCMW Thread Cutting Tool PCBN Cutting Tools Introduction 1. It is a new generation of high economical face milling cutter. 2. It has a good ability of self-sleeking. 3. The diameter ranges between D25 to D315. PCBN Cutting Tools Features 1.pcbn insert is of good wear resistance... View More
➤ Visit Website

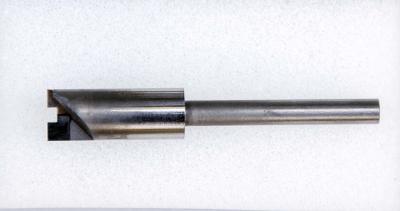

PCD Reamer
(4)

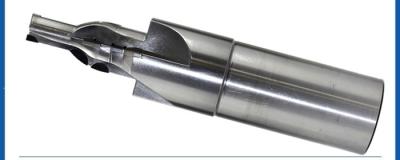

PCD Step Reamer
Price: Negotation
MOQ: Negotiable
Delivery Time: 10-14 working days
Brand: New Asia Rich
High Light:7mm PCD Reamer, 8mm PCD Reamer, 8mm PCD Step Reamer
PCD Reamers PCD reamer is used to precisely process work pieces of various material, such as copper, aluminum, copper alloy, aluminum alloy, tungsten carbide and composite material. Technical Specifications ¢D (mm) L (mm) d (mm) L1 (mm) L2 (mm) 7 130 7 76 6 7 130 7 75 6 8 80 8 40 6 View More
➤ Visit Website

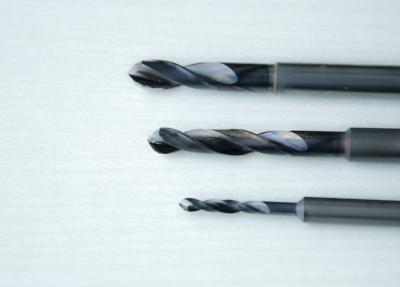

PCD Drills
(16)
8mm 10mm Diamond PCD Drills For Marble , Granite , Acryl
Price: Negotation
MOQ: Negotiable
Delivery Time: 10-14 working days
Brand: New Asia Rich
High Light:10mm Diamond PCD Drills, 8mm Diamond PCD Drills, PCD Drills For Marble
4mm -14mm Diamond PCD Drills For Copper Aluminum Tungsten Carbide Drilling Diamond Drills PCD drill is used to drill work pieces of various materials, such as copper, aluminum, copper alloy, aluminum alloy, tungsten carbide, ceramic, marble, granite, acryl and composite material. Specifications: ¢D ... View More
➤ Visit Website
Solid CBN , SNMN 120408
Price: Negotation
MOQ: Negotiable
Delivery Time: 10-14 days
Brand: New Asia Rich
High Light:SNMN 120408, SNMN 120408 Solid CBN Inserts, SNGN 120712 Solid CBN Inserts
Solid CBN SNGN / SNMN for turning Cast Iron, High speed steel, Hardened steel. Designation I.C. S D R SNGN 090304 9.525 9.525 3.18 0.4 SNGN 120408 12.7 12.7 4.76 0.8 SNGN 120712 12.7 12.7 7.94 1.2 SNMN 150720 15.875 15.875 7.94 2.0 SNMN 201020 20.0 20.0 10.0 2.0 View More
➤ Visit Website

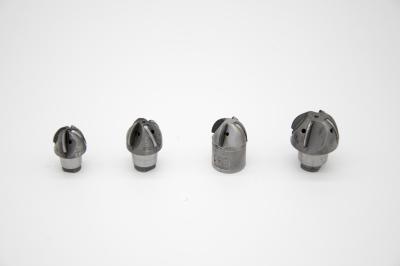

PCD Ball nose End mills
Price: Negotation
MOQ: Negotiable
Delivery Time: 10-14 days
Brand: New Asia Rich
High Light:pcd diamond end mills, milling machine cutters
PCD Ball nose End mills D1 / R (mm) L2 (mm) L3 (mm) L1 (mm) Z D2 (mm) 4 2.5 12/20/28/35 75 2 6 5 3.0 15/25/35 75 2 6 6 6.0 18/30/42 100 2 6 8 7.0 24/40 100 2 8 10 8.0 30/50 100 2 10 12 9.0 36/60 105 2 12 16 11.0 50 130 2 16 20 13.0 60 160 2 20 View More
